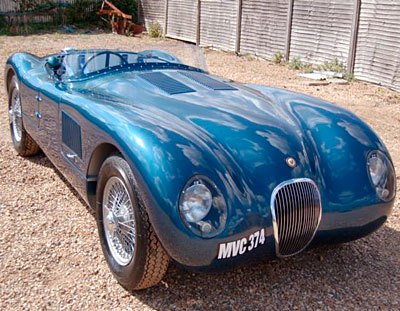

C Type Jaguar

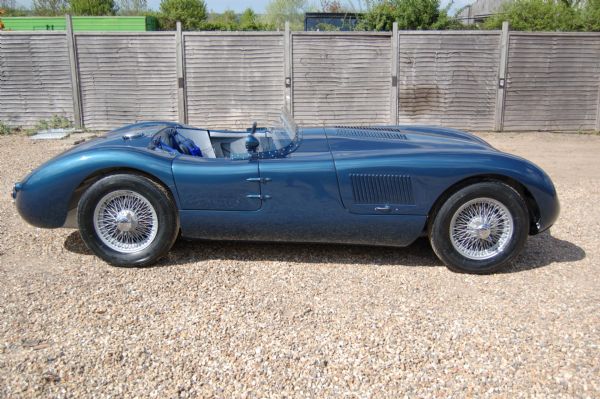

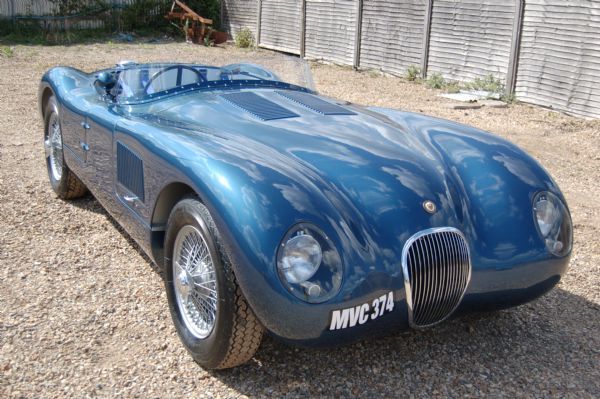

North Devon Metalcraft is now manufacturing complete C-Type Jaguars.

These hand build C-Type will have a quality handmade aluminium body, front bonnet, bulkhead & rear section are removable.

  • Round tubular chassis
  • 3.8 Jaguar engine build by a time served ex Brown Lanes Jaguar craftsman
  • Gearbox options of 4 speed or 5 speed
  • Brake options are disc brakes on front and drum brakes on rear, or disc brakes all round
  • Customer can select colour paint option

Turnkey finished price From £80,000.00

Please phone or E-mail for more information

North Devon Metalcraft C-Type Chassis and Body build list 2016 R/H Drive Cars

Replica ‘C’ type rolling chassis comprising of:

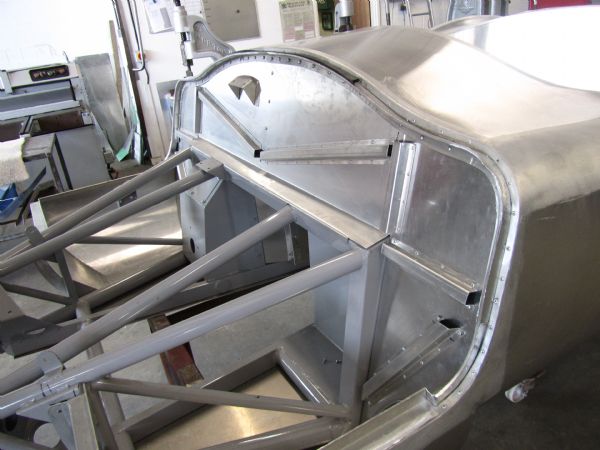

  • 1x Tubular space frame fitted with aluminium floor 3mm aluminium
  • 1x Mk2 Jaguar rear axle
  • 1x Mk2 jaguar front top and bottom wishbones c/w uprights
  • 1x Set of new front and rear splined  hubs c/w knock on spinners
  • 1x Pair of new front ventilated discs c/w 4 pot callipers
  • 1x Pair of new rear solid discs with new single pot callipers & rebuilt handbrake calliper
  • 4x New 5” x 5” wire wheels c/w new tyres
  • 4x Adjustable alloy damper unit’s c/w springs
  • 1x Steering rack c/w steering column and steering wheel
  • 1x Pedal set with master cylinders

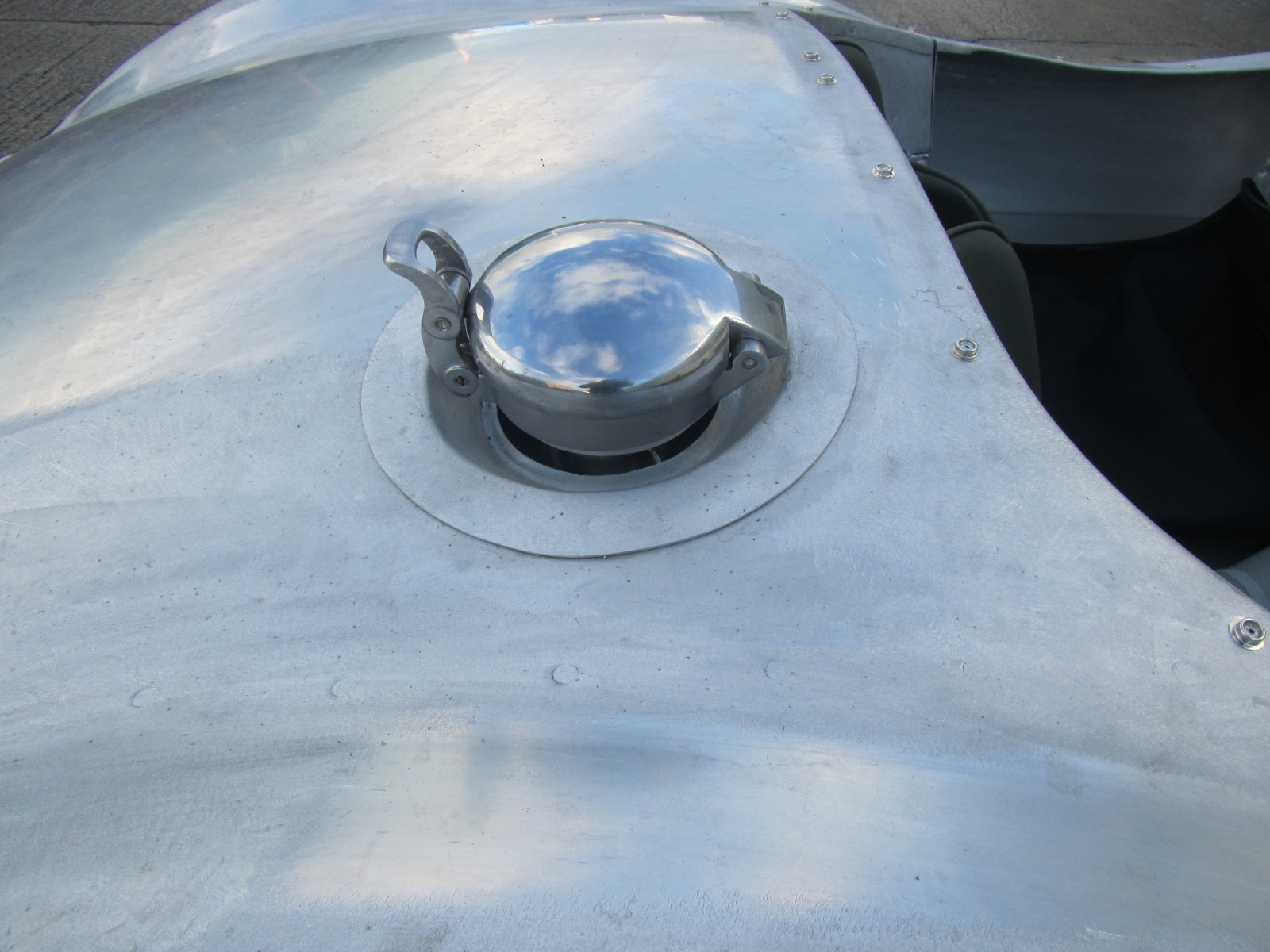

  • 1x Aluminium fuel tank c/w fixing brackets
  • 1x Set of front engine mounting for Jaguar 6 cylinder engine
  • 1x Pair of front mounting brackets for bonnet hinge
  • 1x Purpose made radiator

C Type Body

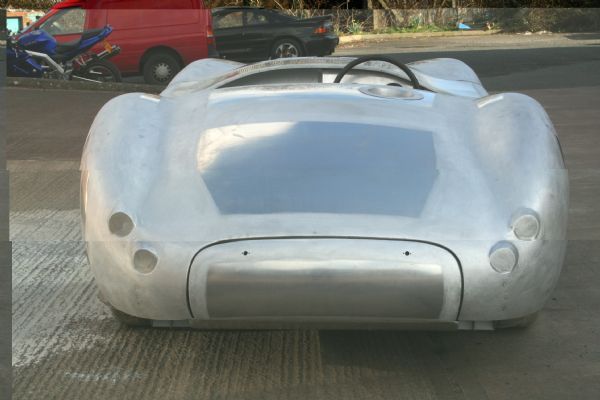

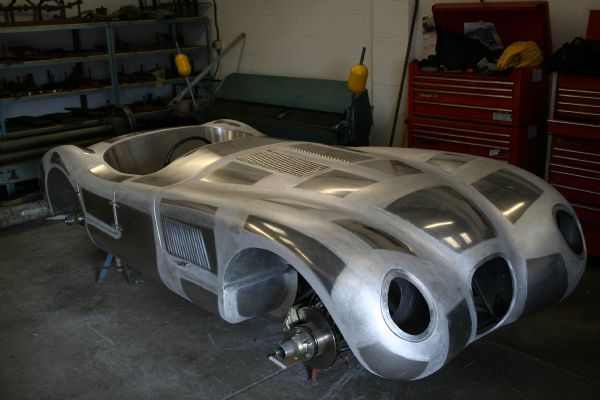

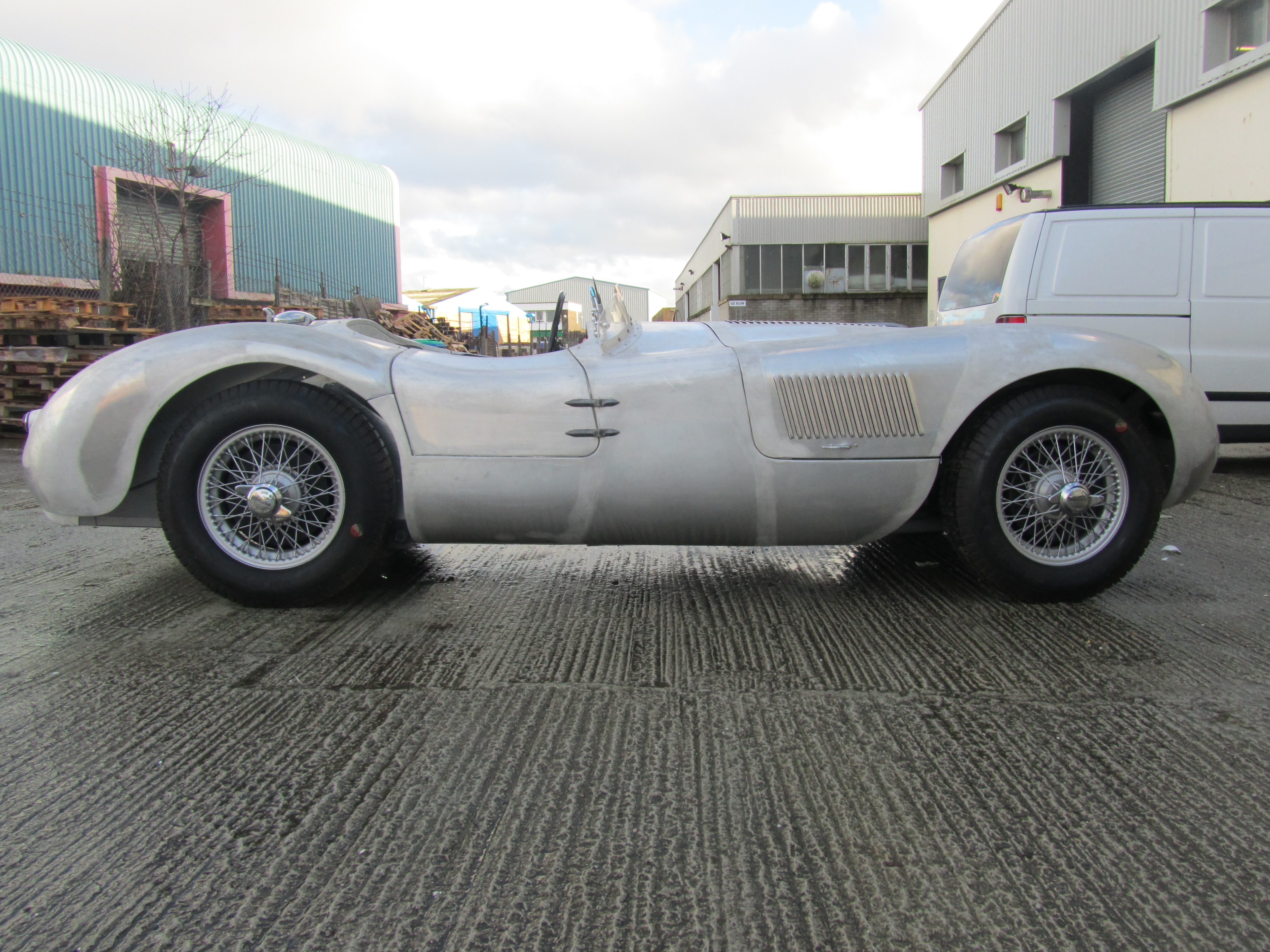

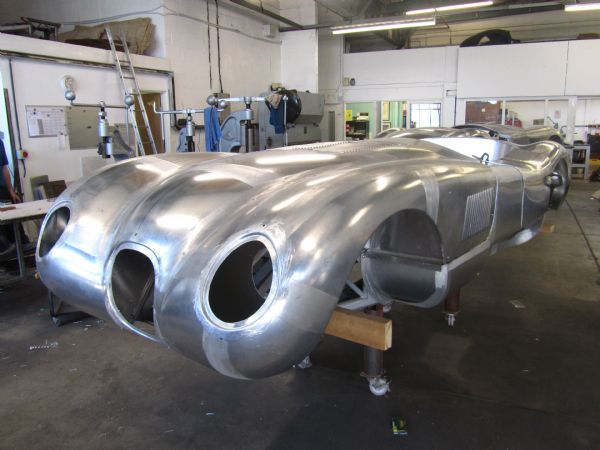

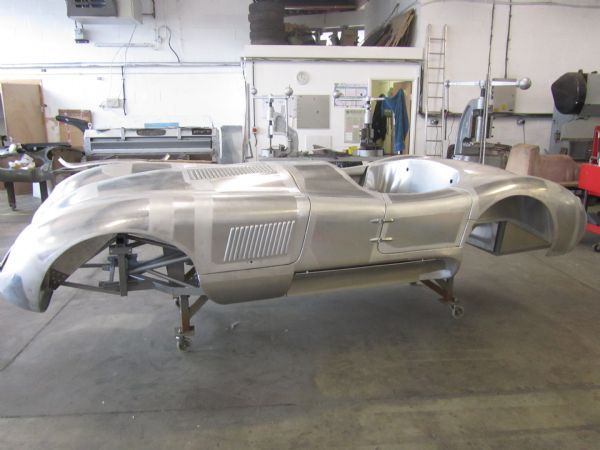

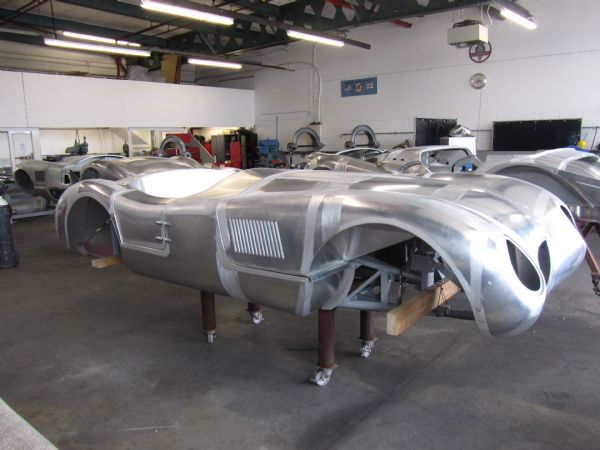

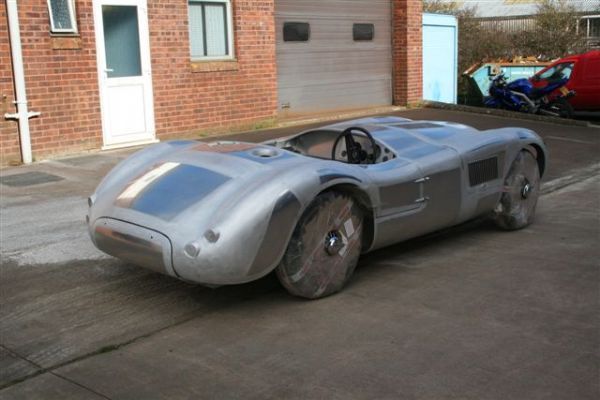

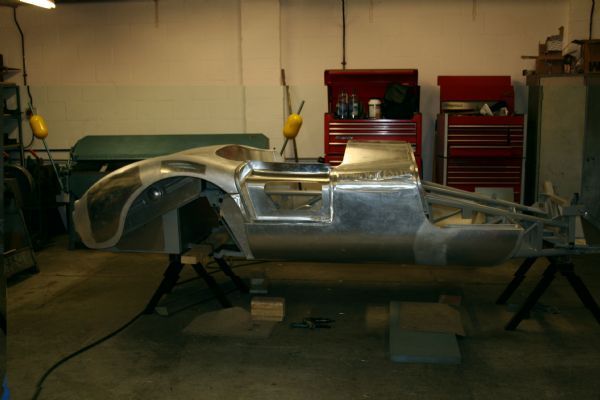

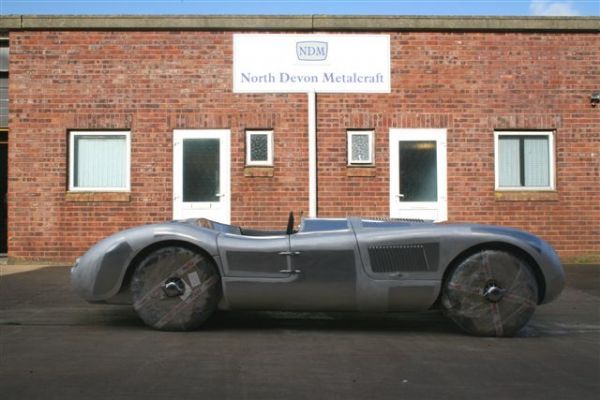

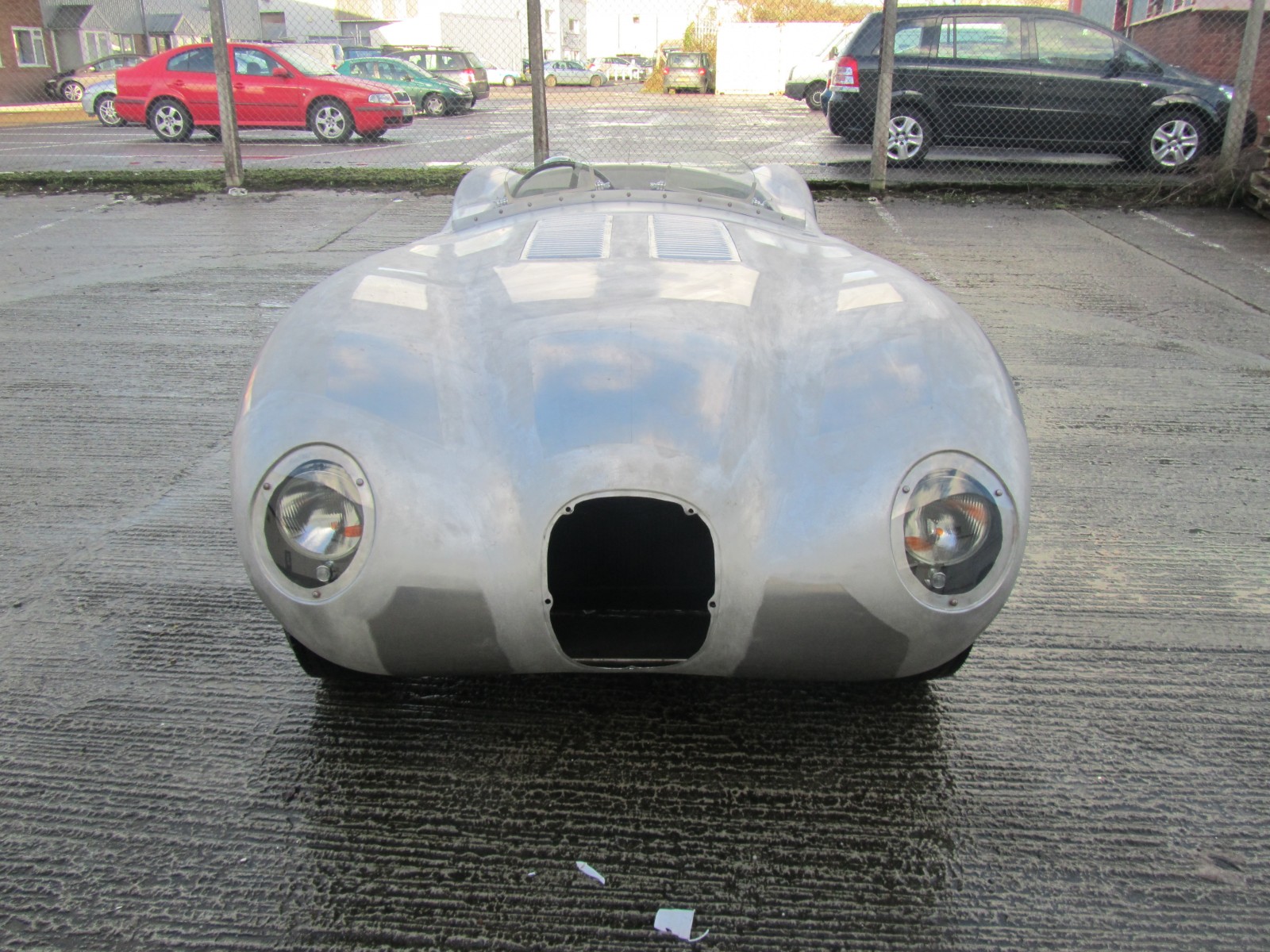

  • 1x Full aluminium body ready for paint, with detachable front bonnet and middle

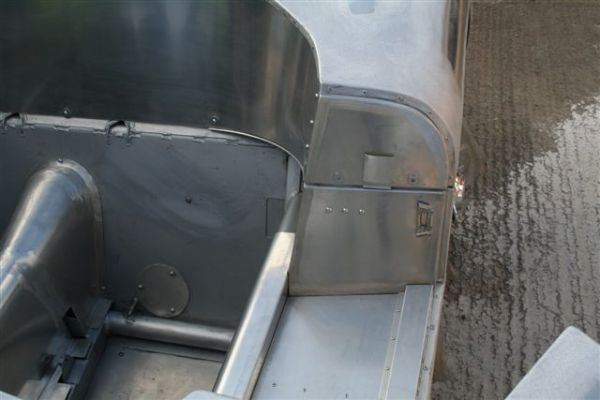

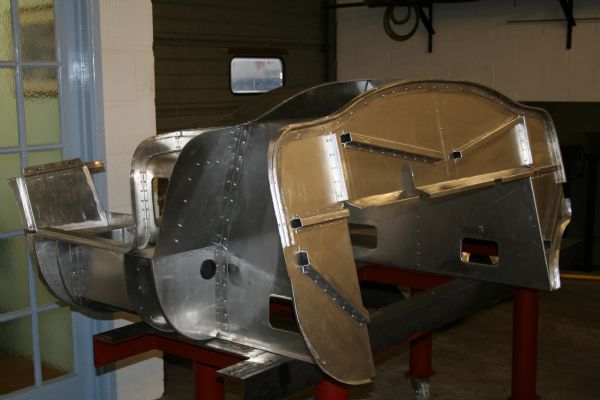

  • Bulkhead section and rear section plus authentic looking aluminium tunnel
  • All aluminium inner sections and as original under bonnet venting

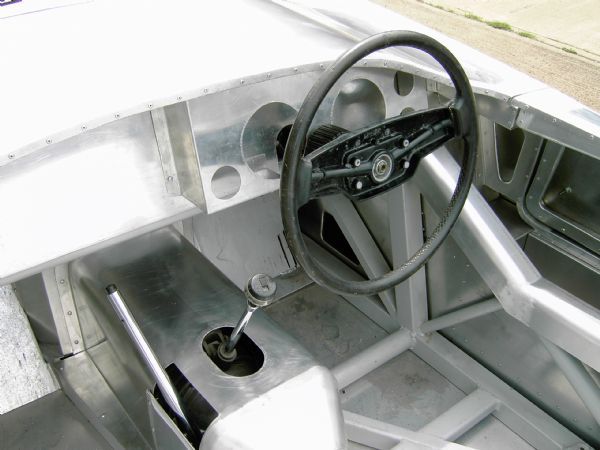

  • As well as dashboard for smiths clocks

Options

  • Supply and install lighting and dashboard clocks and wiring harness
  • Ready to receive engine and transmission
  • Seat frames in aluminium (inc. runners)
